Touch Screen Displays
Our premium-grade, Projected Capacitive (PCAP) touch screen displays offer unsurpassed accuracy, optics, and durability.
Built waterproof, dust-proof, and with long-term stability, these touch screens are a great candidate for your most demanding applications.
The Most Reliable Touch Screens on the Market
Our PCAP touch screen line yields less than a 1% failure rate while still boasting a stunning appearance.

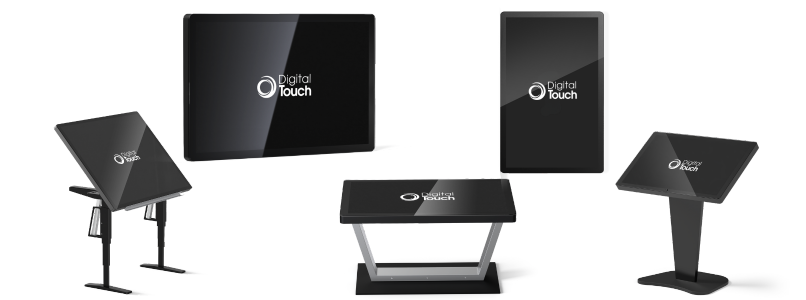

These multi touch displays come with standard vesa mounting patterns for landscape, portrait, kiosk, or table mounting options. The vandal-resistant glass is 5mm thick—not even a steel hammer could knock it out. We also offer flush mounting options for a completely seamless integration into any surface.
Durable, Built-to-Last Touchscreens.

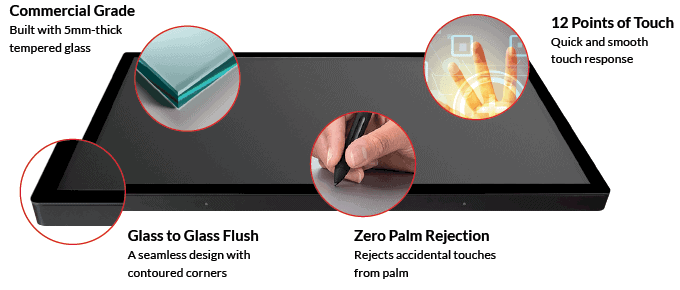

Our PCAP touch screen displays come equipped with:
- Sleek contoured corners
- Anti-glare and scratch resistant glass coating
- Integrated speakers
- multi-touch, and gesture capabilites out of the box
- Quick and smooth touch response
- Ultra-high definition and 4K options
- Compatible with Android, Windows, and iOS
- Palm rejection
- Flush design
Engage better with touch and digital screens anywhere.
Increase convenience, speed, sales & build customer loyalty with interactive touchscreens & no-code screen management software.
MANUALS & DRAWINGS
User Manuals + Drawings
| 24″ – DTS-2420C | 32″- DTS-3270C | 43″- DTS-4320KC | 46″ – DTS-4670C |
| 55″- DTS-5570KC | 65″- DTS-6570KC | 86″ – DTS-8670KC |
SPECIFICATIONS
|
Screen Size |
24″ |
32″ |
43″ |
46″ |
55″ |
65″ |
86″ |
|---|---|---|---|---|---|---|---|
| Model | DTS-2420C | DTS-3270C | DTS-4320KC | DTS-4670C | DTS-5570KC | DTS-6570KC | DTS-8645T |
| Aspect Ratio | 16:09 | 16:09 | 16:09 | 16:09 | 16:09 | 16:09 | 16:09 |
| Dimensions | 23.04″ x 13.99″ x 1.59″ | 30.76″ x 18.74″ x 2.24″ | 40.08″ x 23.87″ x 2.4″ | 43.31″ x 25.77″ x 2.44″ | 50.96″ x 30.13″ x 2.53″ | 59.48″ x 34.91″ x 2.79″ | 81.27″ x 49.23″ x 4.09″ |
| Active Area | 20.76″ x 11.67″ | 27.49″ x 15.46″ | 37.05″ x 20.84″ | 40.08″ x 22.55″ | 47.62″ x 26.78″ | 56.24″ x 31.63″ | 73.40″ x 41.35″ |
| Resolution | 1920×1080 | 1920×1080 | 4K | 1920×1080 | 4K | 4K | 4K |
| Contrast Ratio | 1000:01:00 | 4000:01:00 | 1000:01:00 | 4000:01:00 | 1100:01:00 | 1100:01:00 | 1000:01:00 |
| Luminance | 250 cd/m2 | 400 cd/m2 | 500 cd/m2 | 500 cd/m2 | 500 cd/m2 | 500 cd/m2 | 500 cd/m2 |
| Display Colors | 10 bit | 10 bit | 10 bit | 10 bit | 10 bit | 10 bit | 10 bit |
| Touch Sensor | PCAP | PCAP | PCAP | PCAP | PCAP | PCAP | PCAP |
| Touch Points | 10 | 20 | 20 | 20 | 20 | 20 | 50 |
| Touch Response | 25ms | 25ms | 25ms | 10ms | 25ms | 25ms | 15ms |
| Touch Method | Finger or Capacitive Pen | Finger or Capacitive Pen | Finger or Capacitive Pen | Finger or Capacitive Pen | Finger or Capacitive Pen | Finger or Capacitive Pen | Finger or Capacitive Pen |
| Touch Glass | 3.45mm | 3.45mm | 5.45mm | 5.45mm | 5.45mm | 4.45mm | 5mm |
| Surface Treatment | Anti-Glare 3H (Haze 2%) | Anti-Glare 3H (Haze 2%) | Hard Coating (3H), AR(Haze 1%) | Anti-Glare (Haze 11%) | Anti-Glare (Haze 11%) | Hard Coating(2H) AG (1%) | Hard Coating(2H) Anti Glare (3%) |
| Power Consumption | .35A | .6A | .8A | 1A | 1.2A | 1.4A | 2.7A |
| Weight | 16lb | 36lb | 53lb | 75lb | 101lb | 147lb | 286lbs |
| Video Input | HDMI 2.0 / DVI-D / VGA/ D-SUB | HDMI 2.0 / DVI-D / VGA / D-SUB / RS232 | HDMI 2.0 / DVI-D / VGA / D-SUB / RS232 | HDMI 2.0 / DVI-D / VGA / D-SUB / RS232 | HDMI 2.0 / DVI-D / VGA / D-SUB / RS232 | HDMI 2.0 / DVI-D / VGA / D-SUB / RS232 | RS232C/ D-SUB/ DVI-D/ HDMI/ VGA |
| VESA Pattern | 100×100 | 400×200 | 400×200 | 400×200 | 600×400 | 600×400 | 600×400 |
| Mounting Options | Wall, Floor Stand, Kiosk, Flush Mount | Wall, Floor Stand, Kiosk, Flush Mount | Wall, Floor Stand, Kiosk, Table, Flush Mount | Wall, Floor Stand, Kiosk, Table, Flush Mount | Wall, Floor Stand, Kiosk, Table, Flush Mount | Wall, Floor Stand, Kiosk, Table, Flush Mount | Wall, Floor Stand, Kiosk, Table, Flush Mount |
