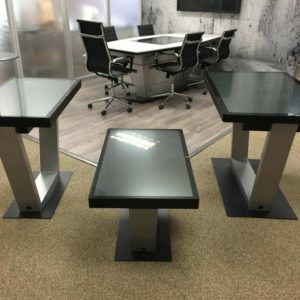

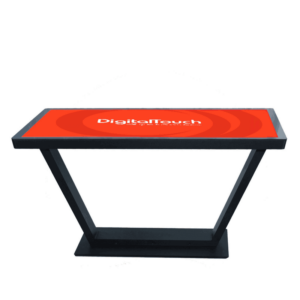

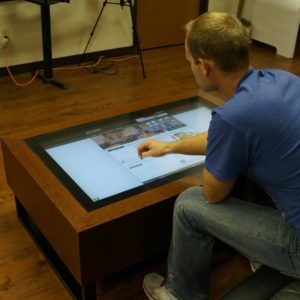

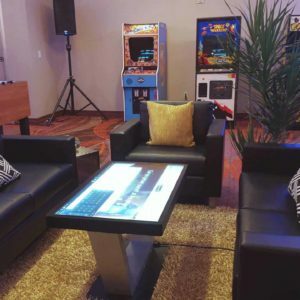

Touch Screen Tables

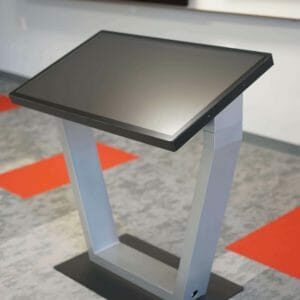

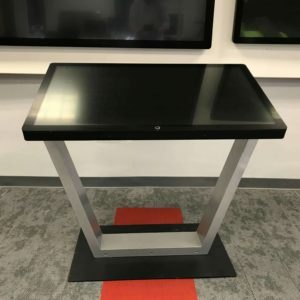

With a tilted touch screen that you can approach at any time, use for as long or as short a time as you need, and return to what you were previously doing. The 20-degree tilt is ideal for displaying content in landscape mode.

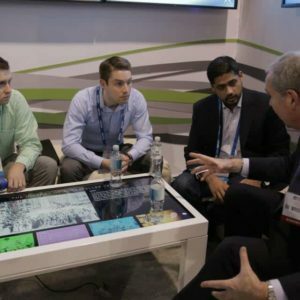

For potential customers facing presentations, trade show displays, educational programs, and more, tilted touch screen tables give you the best viewing angle to be on your feet while operating.
Design, engineering, education and architecture programs can incorporate tilted touch screens as the ultimate tool for working with applications while using other materials, presentations, and group projects.
Touch Table Options

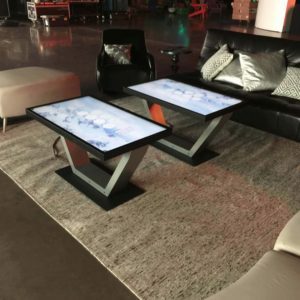

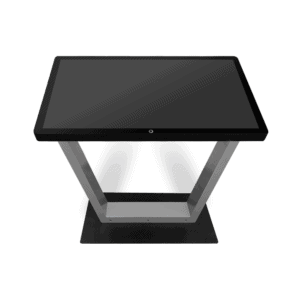

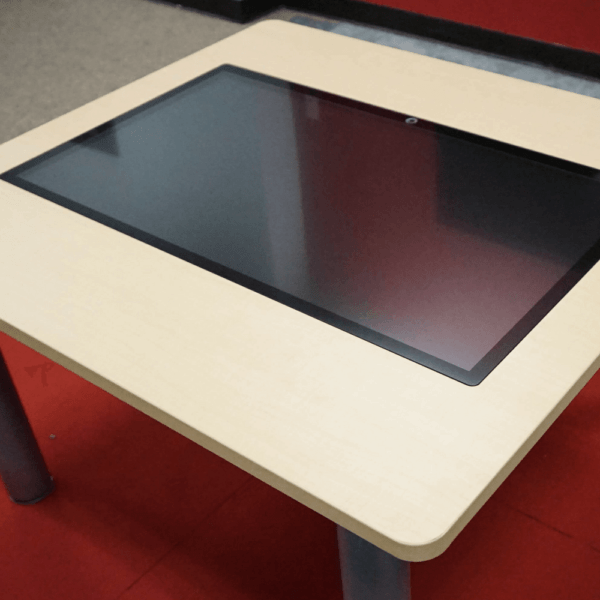

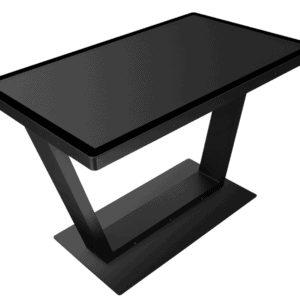

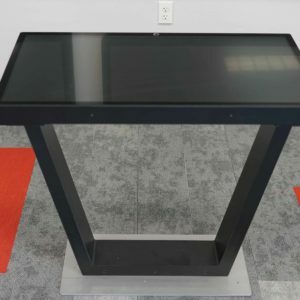

Tilted Table – Flat Table – Tilted Drafting Table
Our tilted touch screens sit on a removable attachment and can be converted into a flat touch screen table or wall-mounted display in a matter of minutes. Each unit can come with totally customized software, curtailed specifically for your business.
We’re here to help – drop us a note and a DTS Specialist will be in touch.
Interactive Table Sizes:
43″, 46″, 55″, 65″, & 86″

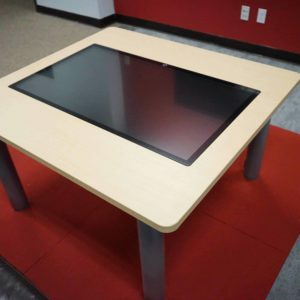

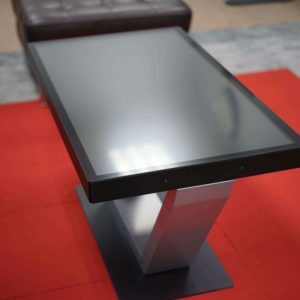

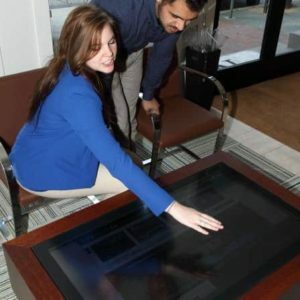

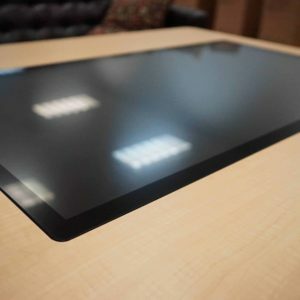

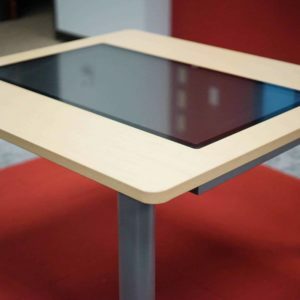

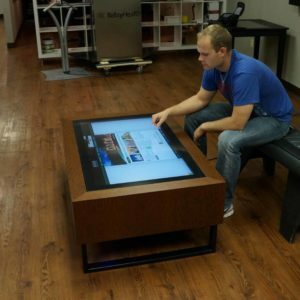

Our flat touch screen table kit comes in a variety of sizes: 43″, 46″, 55″, 65″, and 86″. The tables can be painted any color on the color wheel. These multi touch tables are the perfect way to get people interacting with your content
Completely Portable
Our Touch Screen Tables can be built to ship flat in a case and re-assembled in minutes making Digital Touch Systems the only company in the world to build mobile touch tables that still function better than most while looking amazing at the same time. Touchscreen tables are the answer for anyone looking to have the best product available on the market to showcase their products and services.
MANUALS & DRAWINGS
User Manuals + Drawings
| 24″ – DTS-2410C | 32″- DTS-3270C | 43″- DTS-4320KC | 46″ – DTS-4670C |
| 55″- DTS-5570KC | 65″- DTS-6570KC |
SPECIFICATIONS
|
Screen Size |
24″ |
32″ |
43″ |
46″ |
55″ |
65″ |
86″ |
|---|---|---|---|---|---|---|---|
| Model | DTS-2420C | DTS-3270C | DTS-4320KC | DTS-4670C | DTS-5570KC | DTS-6570KC | DTS-8645T |
| Aspect Ratio | 16:09 | 16:09 | 16:09 | 16:09 | 16:09 | 16:09 | 16:09 |
| Dimensions | 23.04″ x 13.99″ x 1.59″ | 30.76″ x 18.74″ x 2.24″ | 40.08″ x 23.87″ x 2.4″ | 43.31″ x 25.77″ x 2.44″ | 50.96″ x 30.13″ x 2.53″ | 59.48″ x 34.91″ x 2.79″ | 81.27″ x 49.23″ x 4.09″ |
| Active Area | 20.76″ x 11.67″ | 27.49″ x 15.46″ | 37.05″ x 20.84″ | 40.08″ x 22.55″ | 47.62″ x 26.78″ | 56.24″ x 31.63″ | 73.40″ x 41.35″ |
| Resolution | 1920×1080 | 1920×1080 | 4K | 1920×1080 | 4K | 4K | 4K |
| Contrast Ratio | 1000:01:00 | 4000:01:00 | 1000:01:00 | 4000:01:00 | 1100:01:00 | 1100:01:00 | 1000:01:00 |
| Luminance | 250 cd/m2 | 400 cd/m2 | 500 cd/m2 | 500 cd/m2 | 500 cd/m2 | 500 cd/m2 | 500 cd/m2 |
| Display Colors | 10 bit | 10 bit | 10 bit | 10 bit | 10 bit | 10 bit | 10 bit |
| Touch Sensor | PCAP | PCAP | PCAP | PCAP | PCAP | PCAP | PCAP |
| Touch Points | 10 | 20 | 20 | 20 | 20 | 20 | 50 |
| Touch Response | 25ms | 25ms | 25ms | 10ms | 25ms | 25ms | 15ms |
| Touch Method | Finger or Capacitive Pen | Finger or Capacitive Pen | Finger or Capacitive Pen | Finger or Capacitive Pen | Finger or Capacitive Pen | Finger or Capacitive Pen | Finger or Capacitive Pen |
| Touch Glass | 3.45mm | 3.45mm | 5.45mm | 5.45mm | 5.45mm | 4.45mm | 5mm |
| Surface Treatment | Anti-Glare 3H (Haze 2%) | Anti-Glare 3H (Haze 2%) | Hard Coating (3H), AR(Haze 1%) | Anti-Glare (Haze 11%) | Anti-Glare (Haze 11%) | Hard Coating(2H) AG (1%) | Hard Coating(2H) Anti Glare (3%) |
| Power Consumption | .35A | .6A | .8A | 1A | 1.2A | 1.4A | 2.7A |
| Weight | 16lb | 36lb | 53lb | 75lb | 101lb | 147lb | 286lbs |
| Video Input | HDMI 2.0 / DVI-D / VGA/ D-SUB | HDMI 2.0 / DVI-D / VGA / D-SUB / RS232 | HDMI 2.0 / DVI-D / VGA / D-SUB / RS232 | HDMI 2.0 / DVI-D / VGA / D-SUB / RS232 | HDMI 2.0 / DVI-D / VGA / D-SUB / RS232 | HDMI 2.0 / DVI-D / VGA / D-SUB / RS232 | RS232C/ D-SUB/ DVI-D/ HDMI/ VGA |
| VESA Pattern | 100×100 | 400×200 | 400×200 | 400×200 | 600×400 | 600×400 | 600×400 |
| Mounting Options | Wall, Floor Stand, Kiosk, Flush Mount | Wall, Floor Stand, Kiosk, Flush Mount | Wall, Floor Stand, Kiosk, Table, Flush Mount | Wall, Floor Stand, Kiosk, Table, Flush Mount | Wall, Floor Stand, Kiosk, Table, Flush Mount | Wall, Floor Stand, Kiosk, Table, Flush Mount | Wall, Floor Stand, Kiosk, Table, Flush Mount |
Our touch screen monitors are available in a variety of builds to match any environment: touch screen table, touch screen kiosk, touch screen on floor stand, or they can be wall mounted.
